BATTERIES

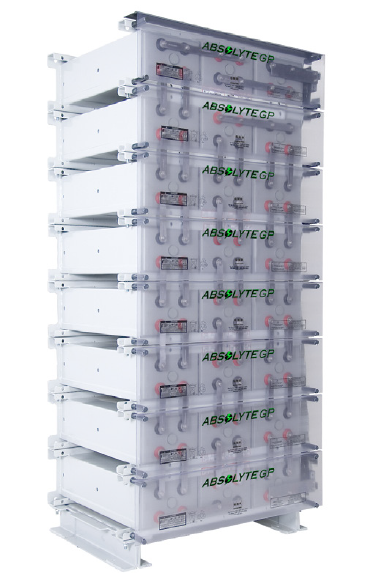

Absolyte® GP 2-Volt Battery Cell Specifications
Telecommunications, UPS, Electric Utility, Railroad, and Renewable EnergyAbsolyte® GP 2-volt battery cells are a proven power solution for telecommunications, UPS, electric utility, railroad, and renewable energy applications. Designed and optimized for standby float, high rate, or deep cycling.
Design Optimization:
Standby float, high rate, or deep cycling

Nominal Capacity Range (Amp-Hours):
105 – 4,800 @ 77°F / 25°C

Nominal Capacity Range (Watts/Cell):
241 – 3,089 @ 77°F / 25°C

Design Life:
20 years @ 77°F / 25°C

Cycle Life:
1,200 cycles @ 80% Depth of Discharge

Operating Temperature Range:
-40°F / -40°C to 122°F / 50°C

Positive Plate Alloy:
Patented lead-calcium-tin-silver alloy reduces grid corrosion

Environmental Benefit:
Fully recyclable

BROCHURES:
Absolyte® GP Battery Series Brochure

Sonnenschein A600 SOLAR Battery Specifications
Sonnenschein A600 SOLAR is a premium battery range developed specifically for applications where cycling is required. It delivers exceptional energy savings and robust reliability proven over decades across global installations.

Technology:
Dryfit Gel – VRLA technology

Cycle Life:
3000+ cycles at 60% Depth of Discharge (C10)

Energy Efficiency:
Lowest energy consumption – cost saving benefits

Plate Technology:
Strong tubular plate design for extended life in demanding conditions

Deep Discharge Protection:
Proof against deep discharge – greater long-term energy delivery

Mounting Options:
Horizontal mounting possible – easy installation and maintenance

Environmental Benefit:
Completely recyclable – low CO₂ footprint

BROCHURES:
Sonnenschein A600 SOLAR Battery Series Brochure

Sprinter Pure Power Battery Specifications
Sprinter Pure Power batteries are engineered for high-performance applications in modern data centers, including colocation and hyperscale facilities. Their thin plate pure lead (TPPL) design delivers compact, efficient, and sustainable energy storage, ideal for digital infrastructures aiming to reduce total cost of ownership.

Technology:
Thin Plate Pure Lead Technology (TPPL)

Design Life:
12+ years at 20 °C (until 80% nominal C10)

Maintenance:
Maintenance-free (no topping up required) throughout service life

AGM Technology:
High-compression Absorbent Glass Mat (AGM) technology

Power Output (10 min):
From 1978 to 5006 watts

Safety Options:
Flame-retardant UL 94 HB or UL 94 V-0 versions

Gas Recombination Efficiency:
Very low gassing due to 99% internal gas recombination efficiency

Space Efficiency:
Up to 20% smaller footprint than traditional lead-acid batteries

BROCHURES:
Sprinter Pure Power Battery Series Brochure

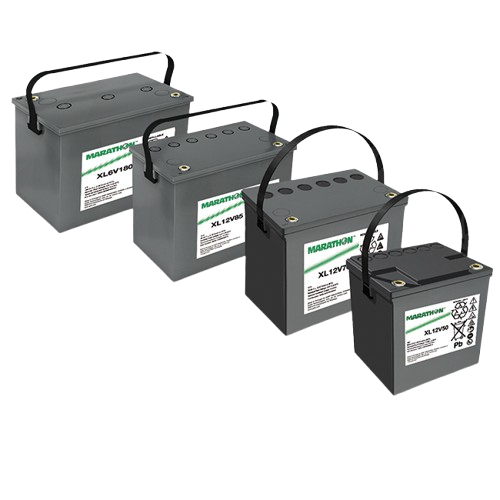

MARATHON L-XL Battery Specifications
Marathon L/XL batteries are engineered for robust performance and longevity, ideally suited for telecommunications and electric utility applications. Designed to support medium and long-duration discharges with exceptional reliability.

Design Life:
>12 years at 20 °C (until 80% nominal C10)

Maintenance:
Maintenance-free (no topping up) during the entire service life

AGM Technology:
High-compression Absorbent Glass Mat (AGM) technology

Nominal Capacity Range:
23.5–600 Ah

Safety Versions:
Standard or flame-retardant version (UL 94 V-0)

Grid Plate Alloy:
High-purity lead, low-calcium, high-tin alloy for excellent corrosion resistance

Gas Recombination Efficiency:
Very low gassing due to 99% internal gas recombination

Self-Discharge Rate:
Low self-discharge rate, enabling extended storage capability

BROCHURES:
Marathon L-XL Battery Series Brochure

MARATHON M-FT Battery Specifications
The Marathon M-FT series is built for durability in telecommunications and electric utility environments. With front terminal access, it offers superior convenience for cabinet enclosures and standard relay rack tray installations.

Design Life:
15 years at 20 °C (until 80% nominal C10)

Maintenance:
Maintenance-free (no topping up) during the entire service life

AGM Technology:
High-compression Absorbent Glass Mat (AGM) technology

Nominal Capacity Range:
35.0–200 Ah

Degassing System:
Central degassing

Safety Versions:
Standard or flame-retardant version (UL 94 V-0)

Grid Plate Alloy:
High-purity lead, low-calcium, high-tin alloy for excellent corrosion resistance

Gas Recombination Efficiency:
Very low gassing due to 99% internal gas recombination

Self-Discharge Rate:
Low self-discharge rate, enabling extended storage capability

BROCHURES:
Marathon M-FT Battery Series Brochure

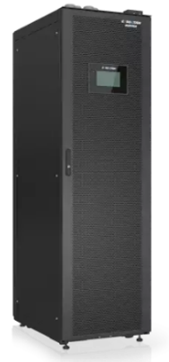

SOLITION Lithium Ion-Ion Battery Specifications
The intelligent lithium-ion based energy storage solution, ideal for safeguarding data in UPS and datacenter environments.

Technology:
Safe and stable LiFePO₄ (Lithium Iron Phosphate) chemistry

Design Life:
Up to 15 years at 25 °C (until 70% nominal capacity)

Fire Protection:
Integrated fire protection system at the module level

Discharge Optimization:
Specially designed for fast-discharge applications (UPS / Datacenters)

Power Range:
50 kW / 60 min to 300 kW / 10 min (1C to 6C)

Voltage Range:
384 to 600V nominal

Operating Temperature Range:
0 to 40 °C

Communication:
Supports stand-alone mode or Modbus communication

Applications:
UPS, Datacenters, and other critical backup systems

BROCHURES:
SOLITION Lithium-Ion Battery Brochure
